Sysplorer 怎么实现交流源？
技术分享
发布于 2025-07-22 14:48:53
查看 1过去315天
用一个 sine 信号加一个电压信号模块可以组成一个交流源。

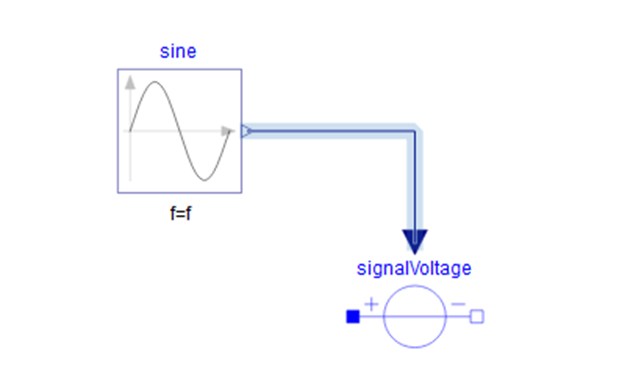

sine 信号模块全名为：Modelica.Blocks.Sources.Sine；电压信号模块全名为：Modelica.Electrical.Analog.Sources.SignalVoltage；连接方式如下：
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
用一个 sine 信号加一个电压信号模块可以组成一个交流源。
sine 信号模块全名为：Modelica.Blocks.Sources.Sine；电压信号模块全名为：Modelica.Electrical.Analog.Sources.SignalVoltage；连接方式如下：
