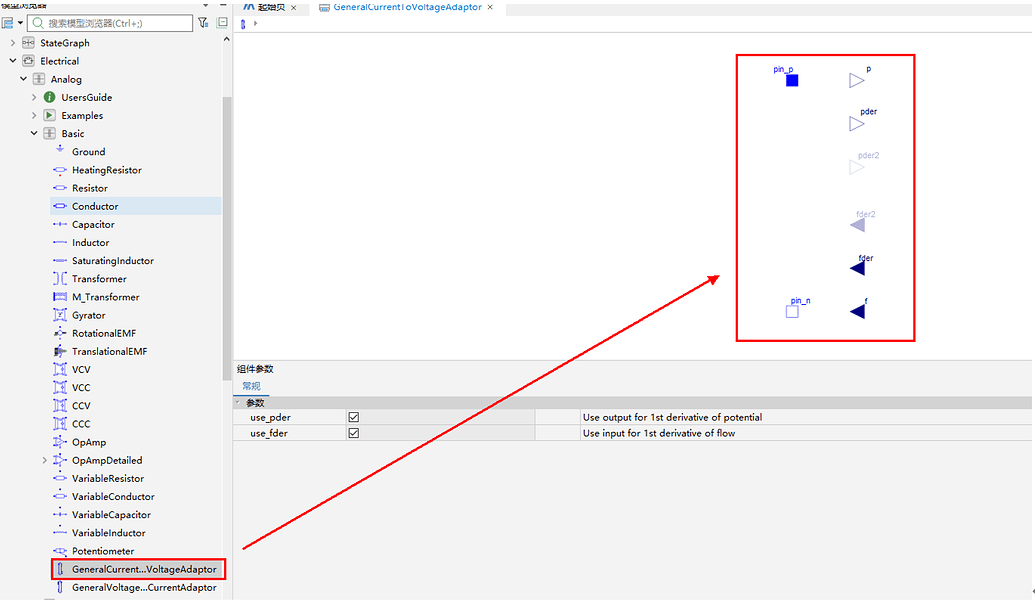

Sysplorer 中类似于 Simulink 的解耦元件技术分享MoHub发布于 2025-07-22 14:53:27查看 1过去315天可以使用 Modelica.Electrical.Analog.Basic.GeneralCurrentToVoltageAdaptor。 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
