MIMO系统的bode图绘制报错如何处理？
技术分享
发布于 2025-08-06 16:32:39
查看 1过去300天

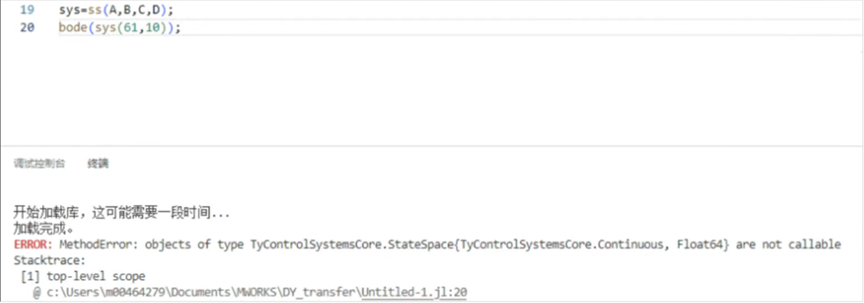

问题现象
MIMO系统的bode图怎么画不出来呢？
ERROR:MethodError:objects of type TyControlSystemCore.StateSpace are not callable Stacktrace
解决方法
bode()函数中输入参数的索引用中括号，应修改为bode(sys[61,10])。
所属专栏：Syslab基础平台
产品信息：Syslab科学计算环境
