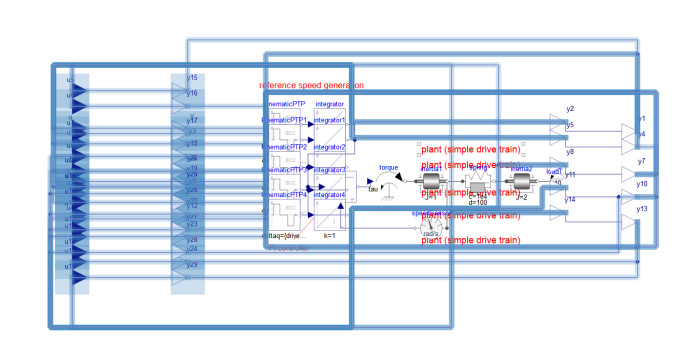

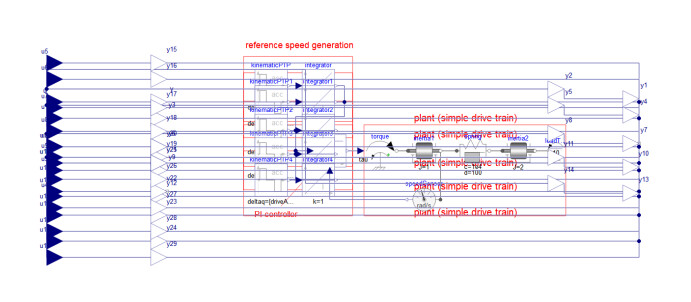

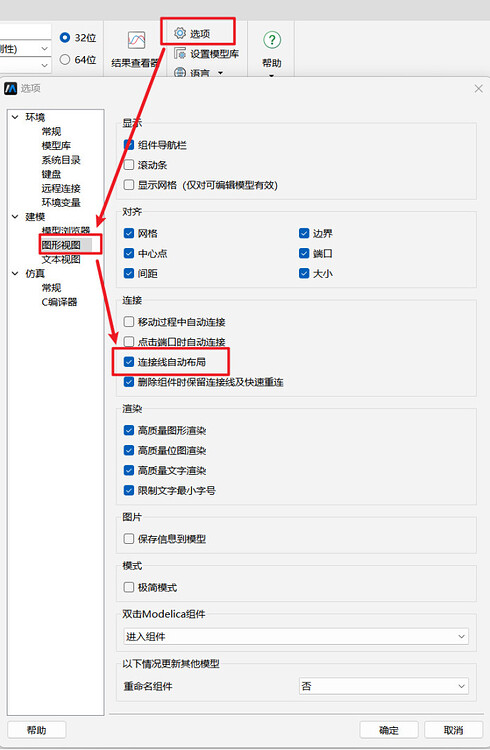

Sysplorer 模型的排线布线很乱，应当如何解决？技术分享MoHub发布于 2025-08-06 16:34:23查看 1过去300天问题现象 模型的排线布线很乱，应当如何解决。 解决方法 可以开启连线自动排布功能，优化此情况 解决方法： 1、打开选项-建模-图形视图，勾选连接线自动布局，之后点击确定 2、选择需要修改的连接线，拖动连线 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
