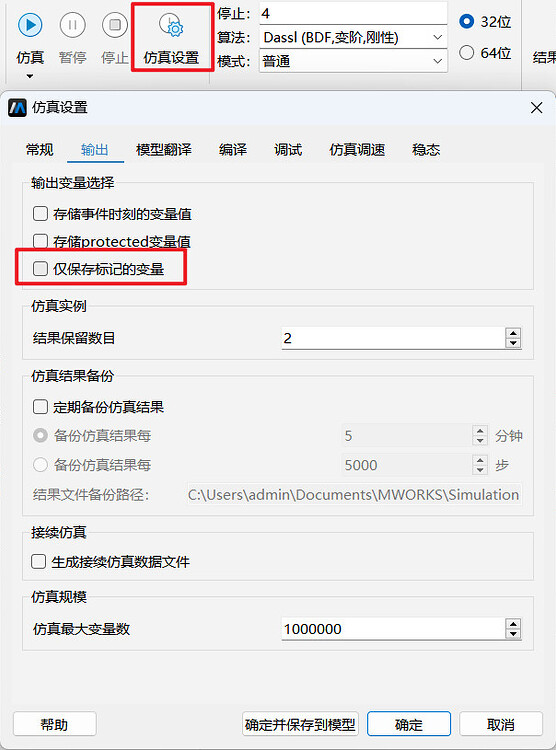

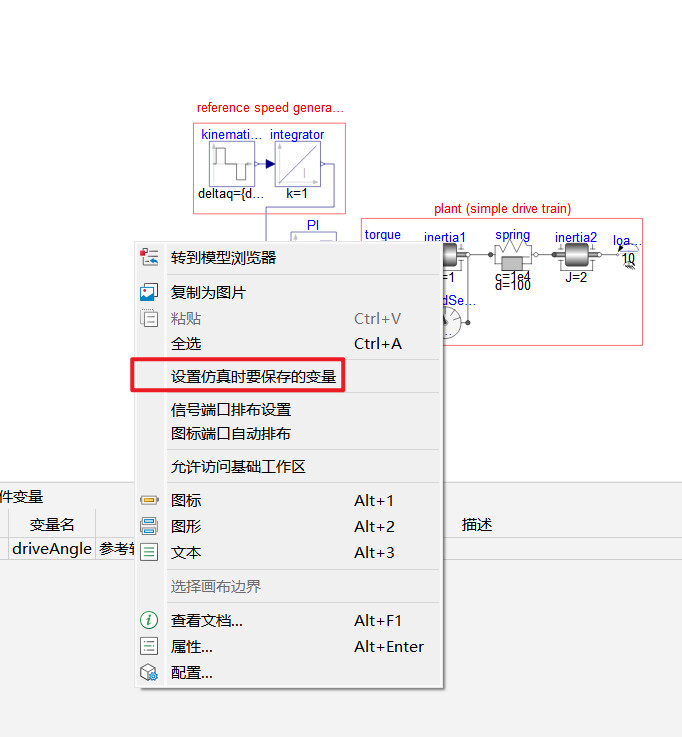

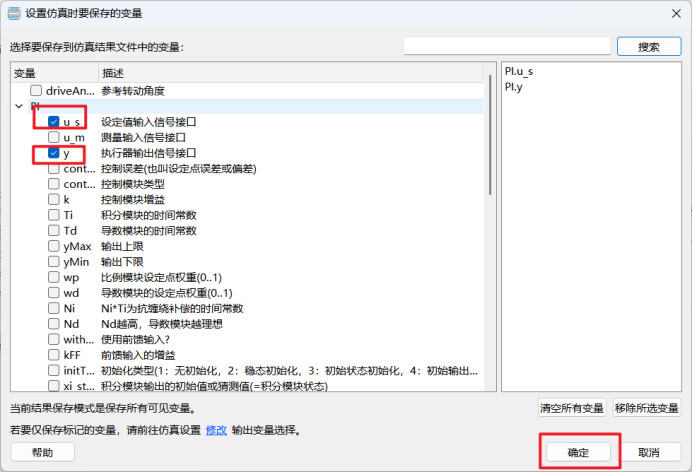

Sysplorer 如何只看某个变量的仿真结果，并且保存在模型技术分享MoHub发布于 2025-08-06 16:34:26查看 1过去300天可以通过设置仿真时要保存的变量，实现此目标。 1.选择要修改的模型，在图形视图，右键空白处，点击设置仿真时要保存的变量 2.勾选变量后，点击确定 3.在仿真设置中，勾选“仅保存标记的变量” 4、点击仿真即可 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
