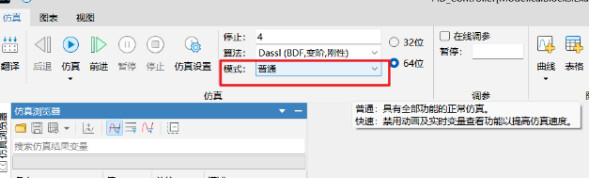

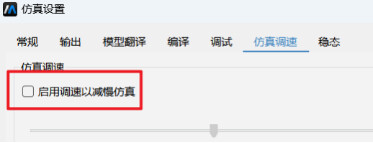

Sysplorer保存了曲线绘制（仿真前），仿真曲线如何实时显示？技术分享MoHub发布于 2025-08-06 16:36:18查看 1过去300天1、点击仿真下剪头，选中仿真调速 2、勾选“启动调速以减慢仿真” 3、模式选择普通 4、之后点击仿真，即可实时查看曲线绘制 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
