Sysplorer如何导出仅含有输入输出的FMU？
技术分享
发布于 2025-08-06 16:36:26
查看 1过去300天
选择一个有输入输出接口变量的模型，例如：
Modelica.Mechanics.MultiBody.Examples.Systems.RobotR3.FullRobot

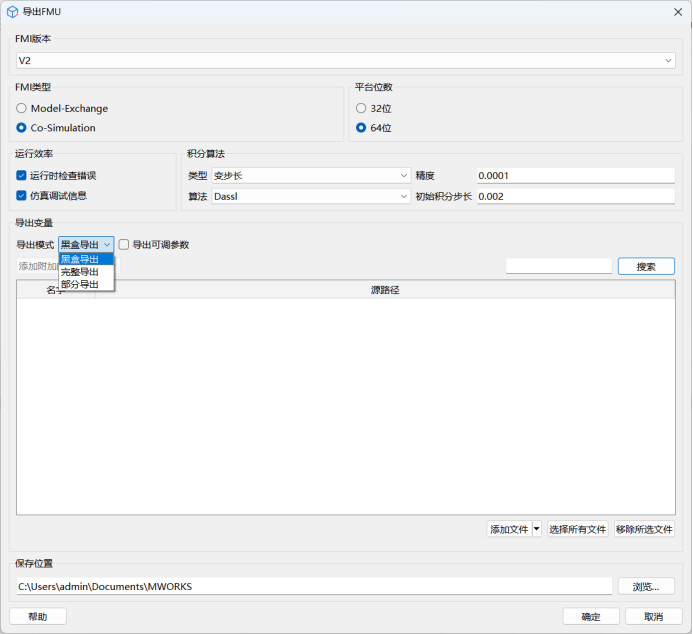

1、在代码生成栏点击FMU，弹出FMU导出窗口。
2、选择“黑盒导出”不勾选“导出可调参数”，即可实现导出的FMU仅含有输入输出
3、其余导出方式具体可查看帮助文档。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
