Sysplorer如何在参数面板直接修改sysblock模型的参数？
技术分享
发布于 2025-08-06 16:36:48
查看 1过去300天

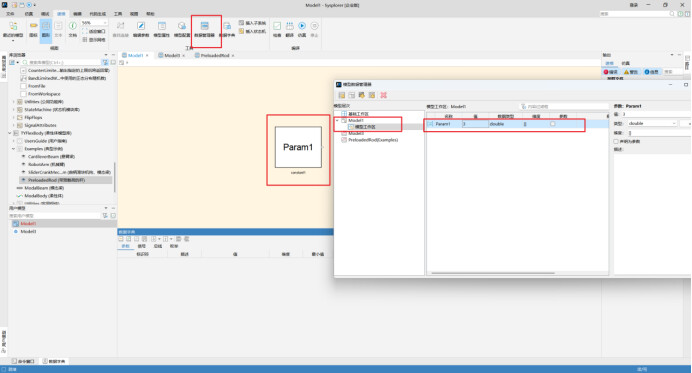

1、在一个sysblock模型中，打开数据管理器，选择这个模型本身，工作区添加一个参数

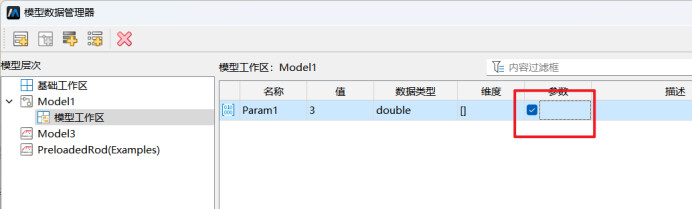

2、勾选参数

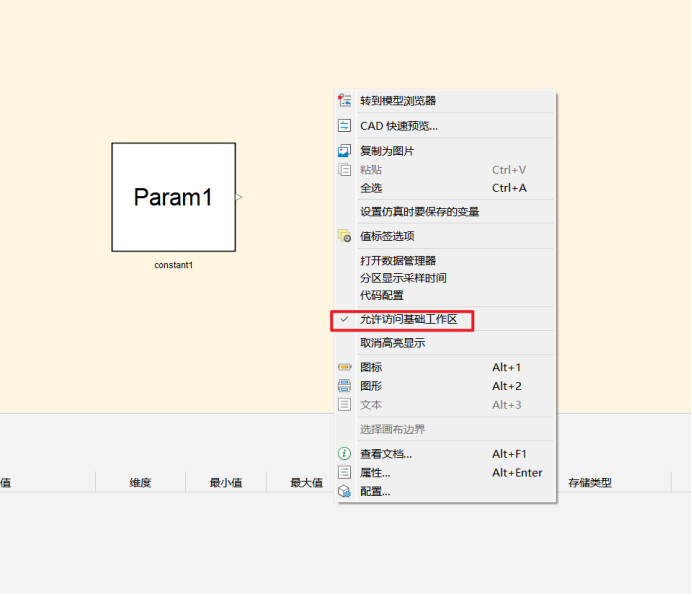

3、勾选“允许访问基础工作区”
4、将sysblock模型，拖入Sysplorer物理模型中

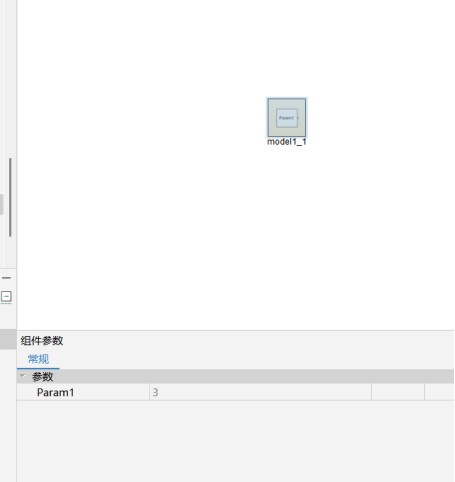

5、就可以在参数面板使用了，sysblock本身没有参数面板，要到物理模型里面才有参数面板
