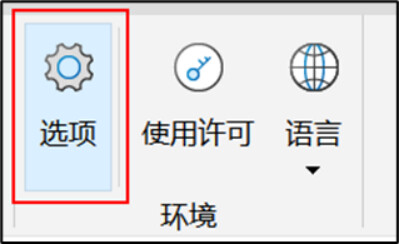

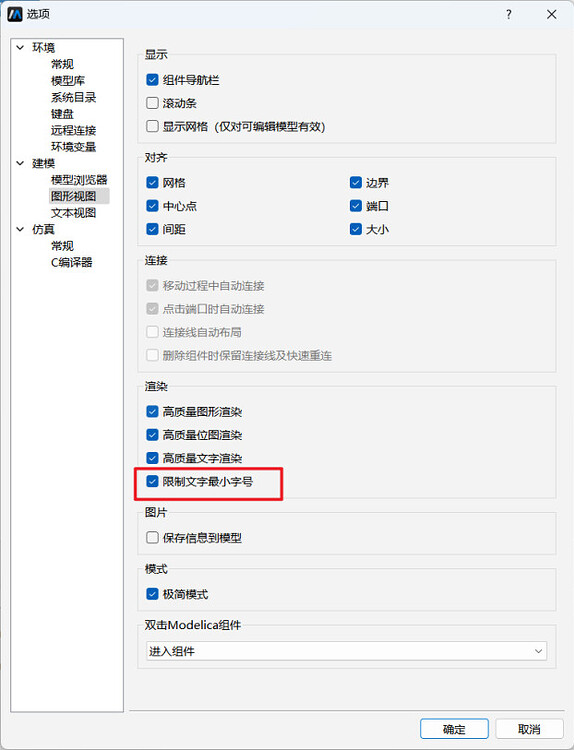

Sysplorer图形视图缩放后图标里面的值不显示，怎么处理？技术分享MoHub发布于 2025-08-06 16:37:06查看 1过去300天问题现象 图形视图缩放后看不到图标里面的值了，如何解决 缩放前 缩放后 解决方法 1、打开选项； 2、切换到建模 - 图形视图 ，取消勾选限制文字最小字号： 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
