创建子系统，提示不支持分量连接，怎么处理？
技术分享
发布于 2025-08-06 16:37:22
查看 1过去300天

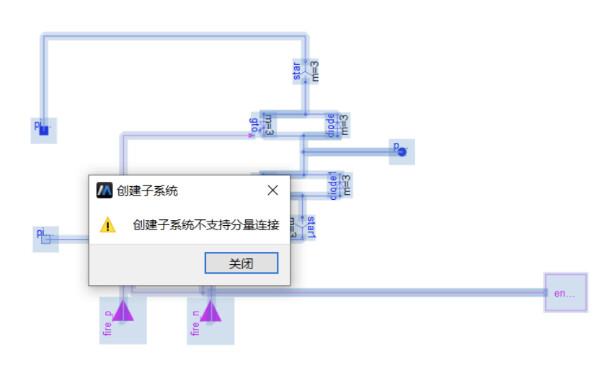

问题现象
创建子系统，提示不支持分量连接
解决方法
分量连接是指：数组连标量产生的那条连接线，封装子系统不支持涉及此种连接情况的封装，在文本中形如connect(a[1],b[2])这种
解决方法：
方法一：封装完后再连接
方法二：修改模型，使其不含有类似connect(a[1],b[2])的分量，规避数组连接标量这种情况
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
