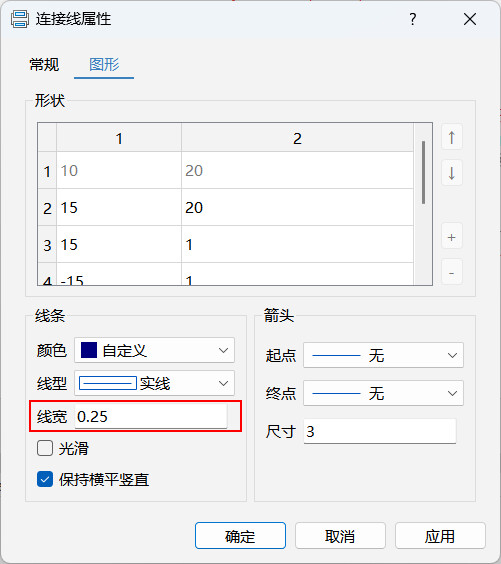

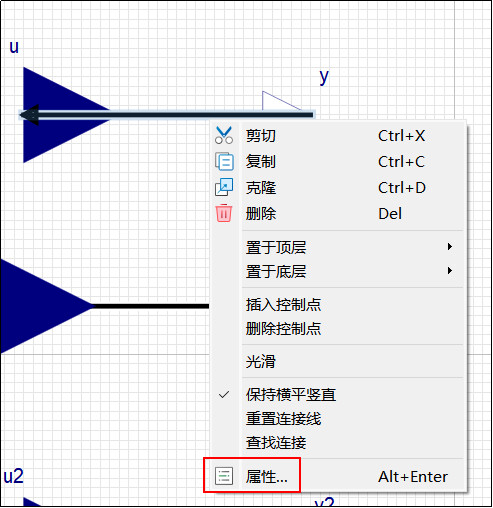

Sysplorer端口连线的宽度如何修改技术分享MoHub发布于 2025-08-06 16:37:28查看 1过去300天1.选中要修改的连线，右键，选中属性 2.切换到图形栏，修改线宽即可 3.点击确定 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
