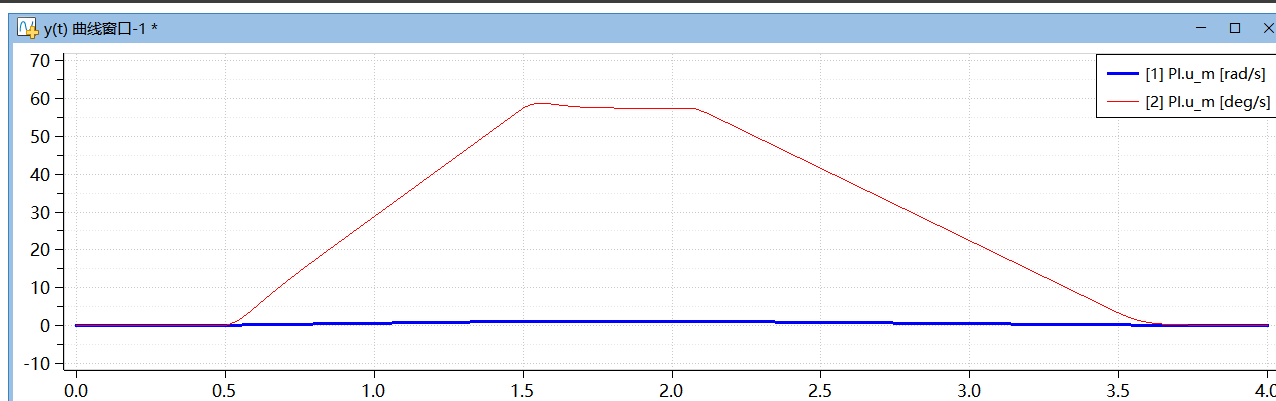

Sysplorer本应相同曲线仿真结果差距较大技术分享MoHub发布于 2025-08-06 16:40:29查看 1过去300天问题现象 FMU 导出后导入，仿真发现结果差异较大 解决方法 检查所选曲线，单位是否一致 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
