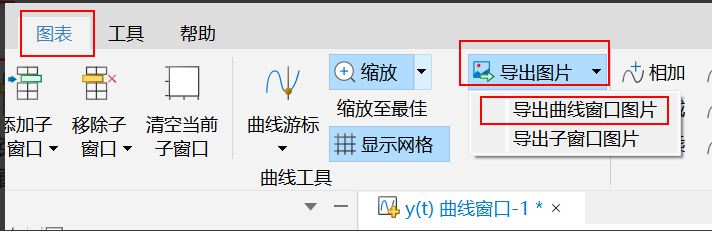

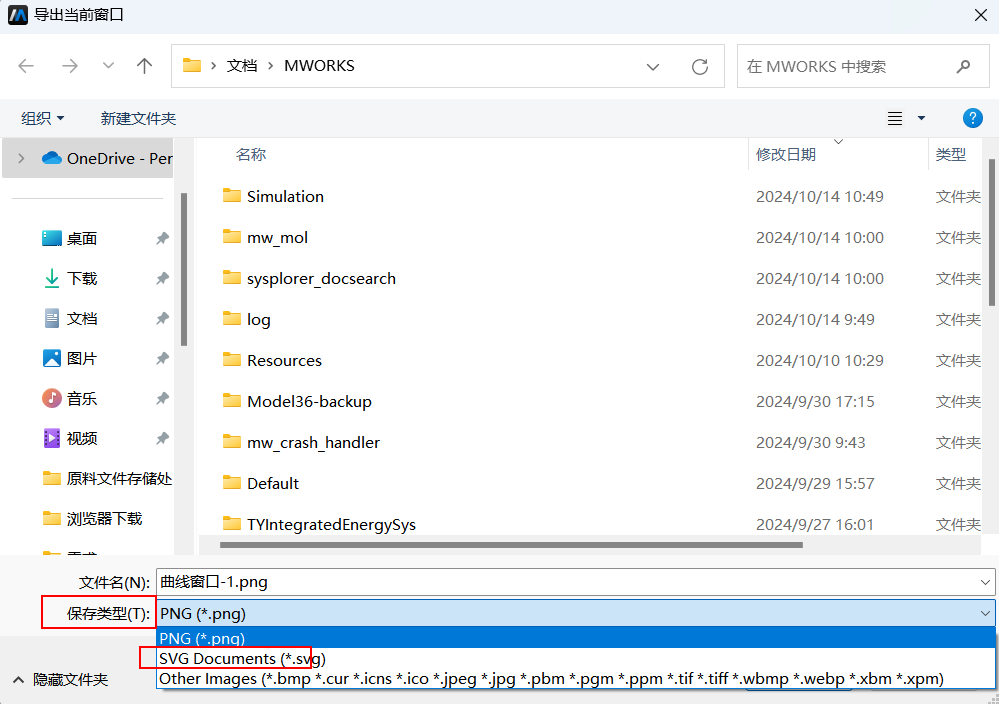

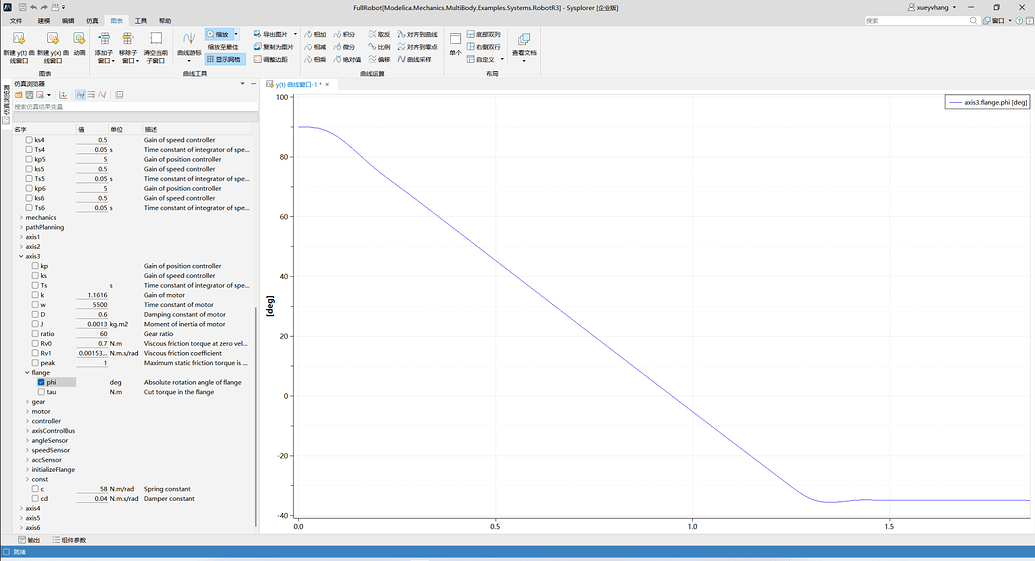

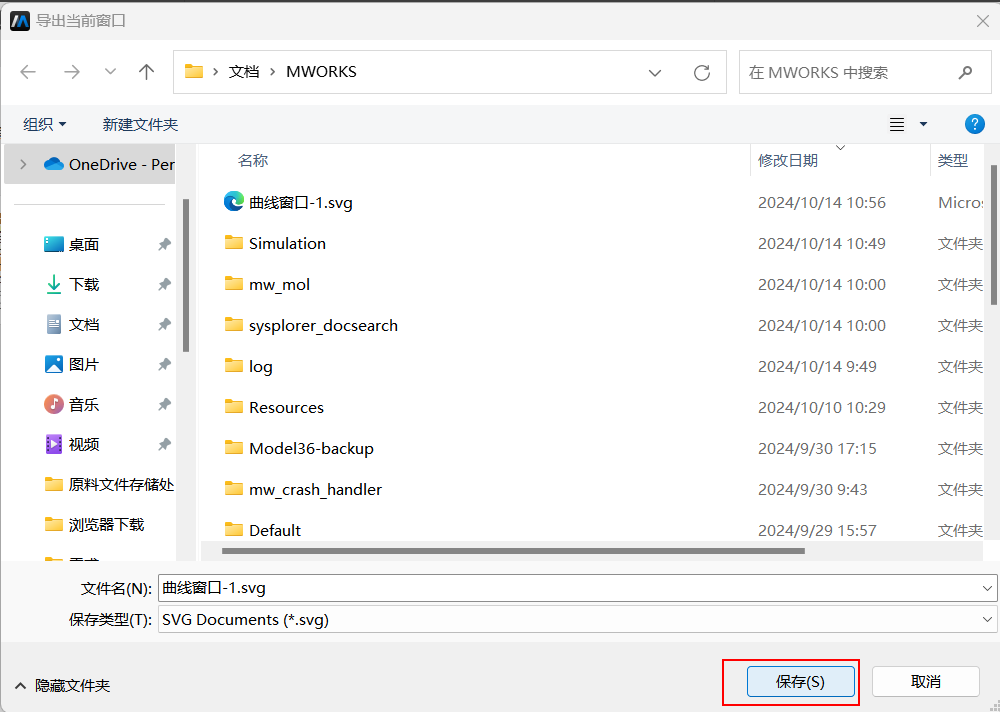

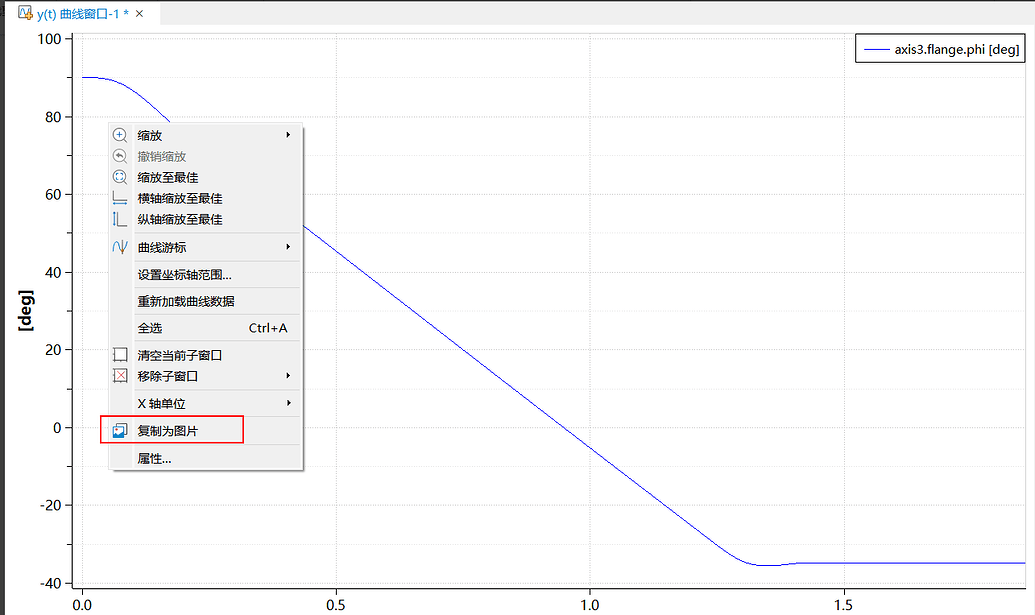

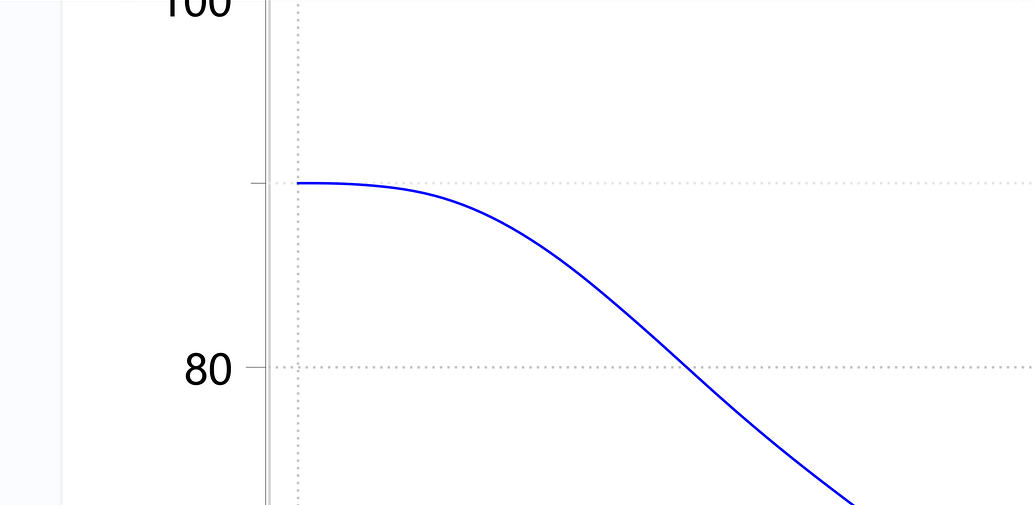

Sysplorer导出图片不清晰技术分享MoHub发布于 2025-08-06 16:40:35查看 1过去300天问题现象 曲线窗口，复制为图片之后，图片有点模糊，想要更清晰 解决方法 1.选择想要导出的曲线 2.图表栏选择“导出图片”-“导出曲线窗口图片” 3.在弹出的导出窗口选择想要导出的位置 4.修改保存类型未SVG，点击保存 5.查看图片，很清晰 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
