Sysplorer模型如何升级成TY4.0
技术分享
发布于 2025-08-06 16:40:43
查看 2过去300天
问题现象
使用Modelica 3.2.3搭建的模型库，需要升级到Modelica TY4.0.0，如何实现呢
解决方法
1.在文本视图新创建一行，写入，
annotation(uses(Modelica(version=“3.2.3”)));
例如

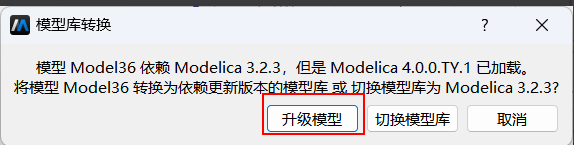

2.卸载模型，再打开，点击升级模型，模型即可升级
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
