Sysplorer如何了解变量是怎么计算的
技术分享
发布于 2025-08-06 16:41:57
查看 1过去300天
问题现象
模型很大，某个变量的计算出了问题，想要了解具体是怎么计算的，但是看模型的话太难分析了
解决方法

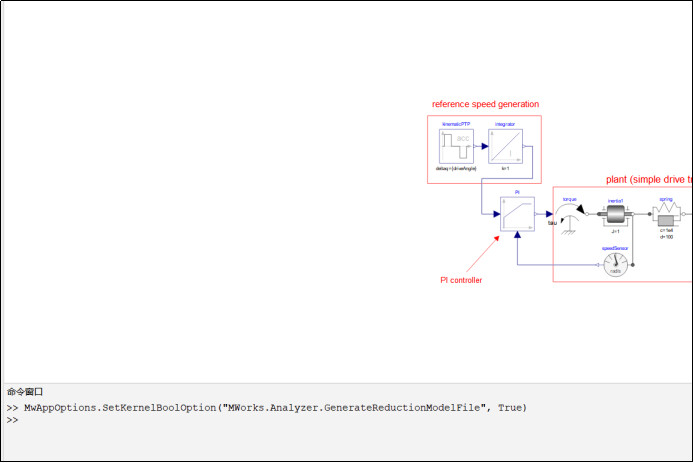

在命令窗口输入
MwAppOptions.SetKernelBoolOption(“MWorks.Analyzer.GenerateReductionModelFile”, True)
点击翻译

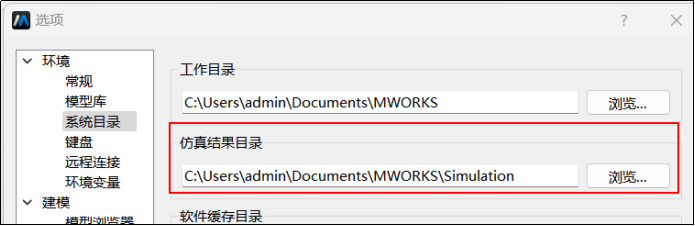

到自己设置的仿真结果目录下![|556x180]

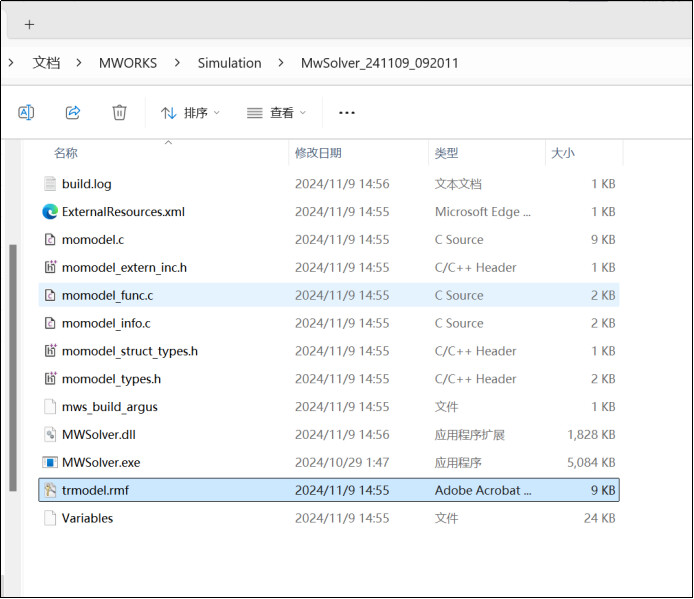

找到最新生成的文件，例如下图，打开其中trmodel.rmf文件

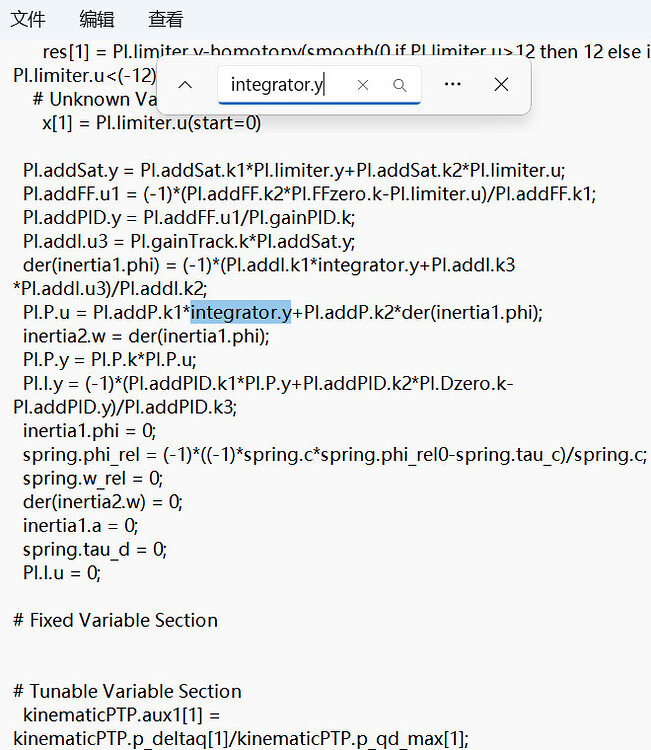

搜索要搜的变量即可
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
