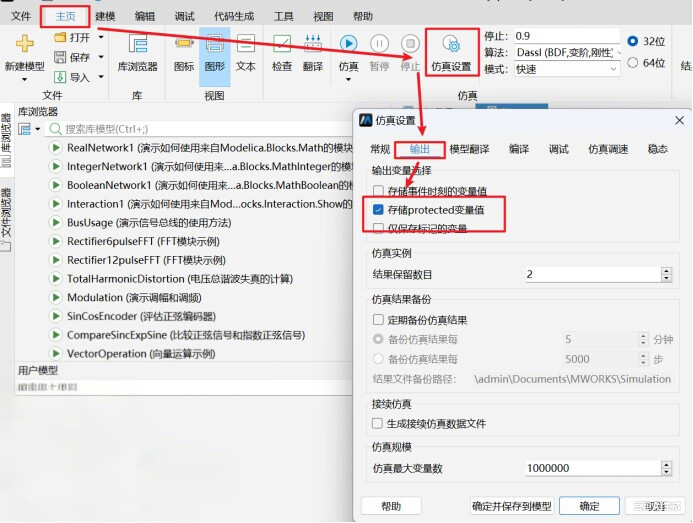

Sysplorer仿真后，有部分动画组件不能正常显示技术分享MoHub发布于 2025-08-06 16:42:03查看 1过去300天有些变量被保护，导致无法在三维动画中展现。 解决方法： 1.删除原本的仿真结果 2.打开仿真设置，勾选输出栏下的“存储protected变量值” 3.点击确定，再次仿真即正常 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
