protected变量无法在仿真浏览器结果中显示
技术分享
发布于 2025-08-06 16:43:30
查看 1过去300天
原因：模型中此变量是个保护变量，对外是不暴露的，因此模型编译之后变量树上找不到。
解决方法：

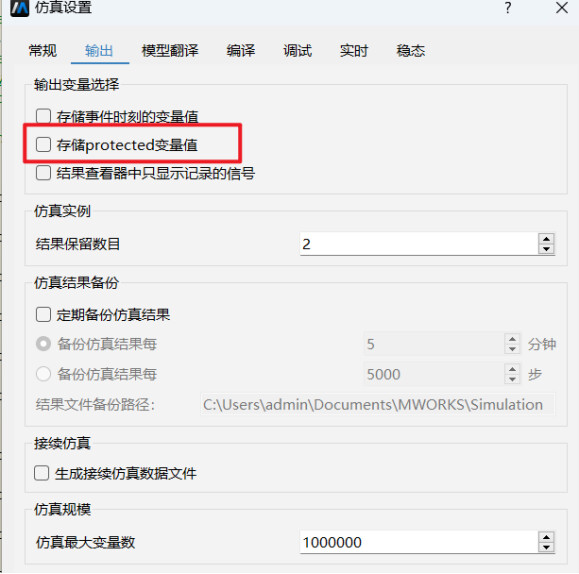

方法一：仿真设置中，勾选存储protected变量值
方法二：修改模型，取消此变量的保护属性
方法三：可以在命令窗口通过设置编译选项，即可解决这种protected变量的问题，MwAppOptions.SetKernelBoolOption(“MWorks.Compiler.HideProtectedVariable”,False)
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
