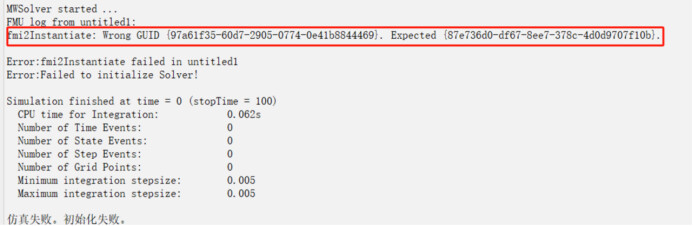

单独的FMU仿真无问题，但加入其他fmu模型，不连接也仿真报错技术分享MoHub发布于 2025-08-06 16:54:01查看 1过去300天问题现象 一个单独的FMU仿真没有问题，把这个fmu模型放在另一个含有FMU的模型中，仿真失败。 解决方法 原因为，变量的唯一标识符不唯一，两个FMU中使用了相同的组件。 解决方法：simulink模型导出FMU时名称需要不一样。 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
