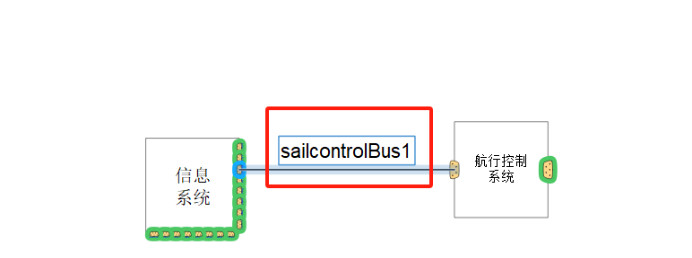

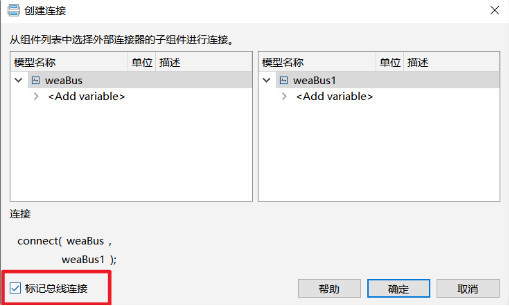

Sysplorer 中 BUS 总线名称去除技术分享MoHub发布于 2025-08-06 16:54:11查看 1过去300天问题现象 Sysplorer 里 BUS 总线上的连线有名称，能否自动去掉这些名称 。 解决方法 连线时不要勾选“标记总线连接” 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
