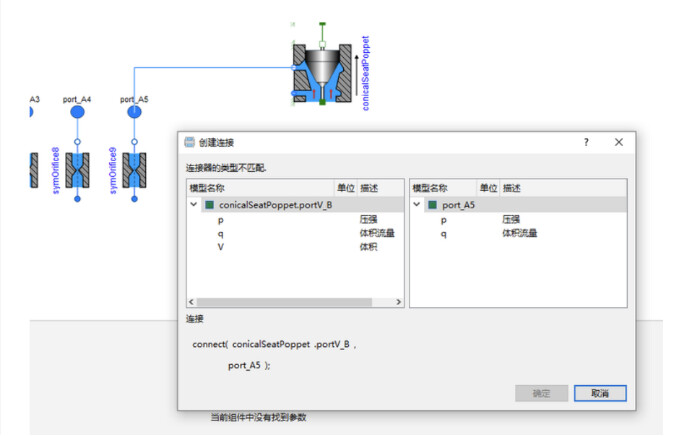

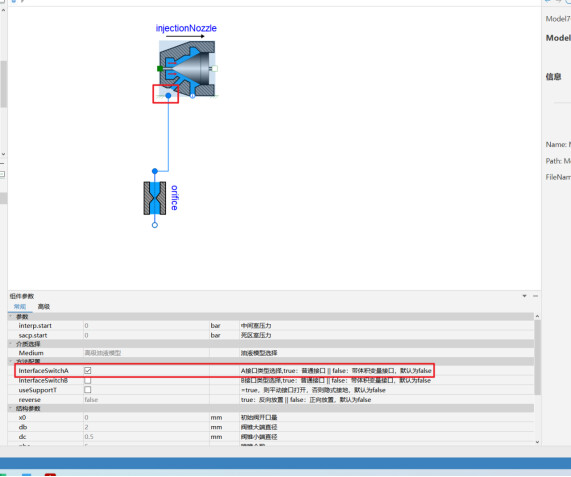

液压滑阀如何跟其他管路相连技术分享MoHub发布于 2025-08-06 16:55:06查看 1过去300天问题现象 液压滑阀如何跟其他管路相连？ 解决方法 当液压滑阀和其他部件连接时出现连接器类型不匹配时： 勾选这个参数后再连接： 原因为，可以看到报错提示上，一侧缺少体积，因此需要勾选此处，使得接口类型匹配 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
