Sysplorer仿真报错The specified module could not be found
技术分享
发布于 2025-08-06 16:55:11
查看 1过去300天
问题现象
仿真fmu时报错The specified module could not be found
解决方法
原因为fmu中缺少需要的dll，导致仿真无法进行
解决方法一：
切换仿真平台位数
解决方法二：

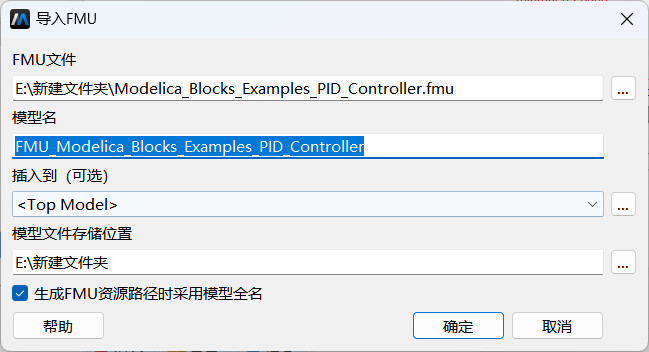

在加载fmu后，会生成FMU资源，

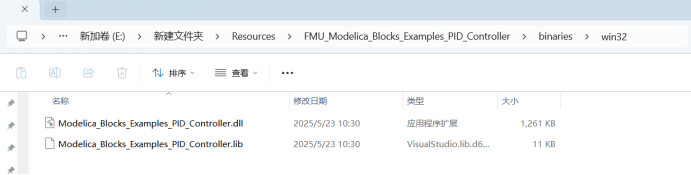

将报错缺失的dll放到FMU资源路径下的文件中即可

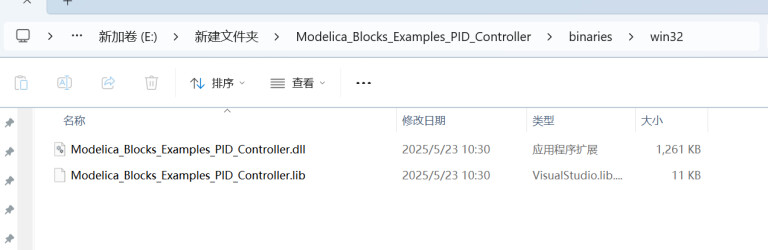

备注：此方法仅可解决此次FMU导入问题，根本原因是导出的FMU有问题,要想修改FMU，可以将后缀改为zip，解压之后，dll放到对应的资源文件下，之后压缩，修改后缀为fmu
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
