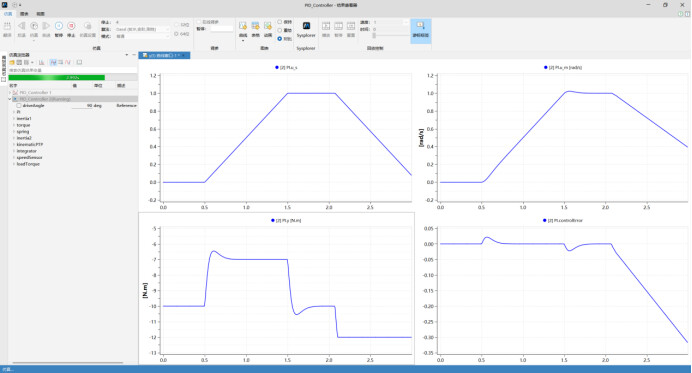

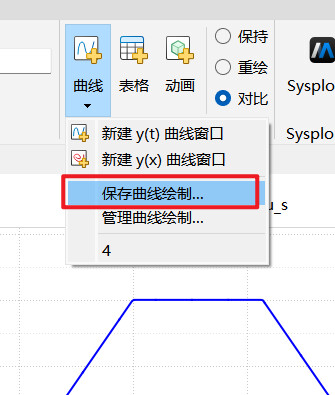

Sysplorer保存曲线窗口绘制如何在一个窗口绘制多条曲线技术分享MoHub发布于 2025-08-06 16:55:31查看 2过去300天解决方法：新建窗口后，使用子窗口功能，绘制多条曲线之后，再进行保存曲线绘制 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
