sysplorer中实现01开断的功能
技术分享
发布于 2025-08-06 16:55:43
查看 1过去300天
问题现象

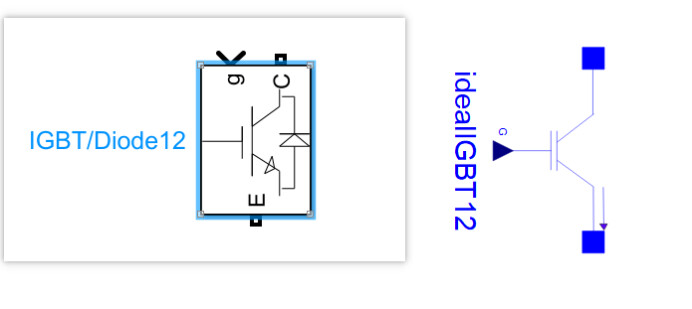

simulink里igbt是g栅极通过接入0和1信号控制开断，sysplorer里igbt的原理好像不是这样，怎样在sysplorer中实现01开断的功能
解决方法

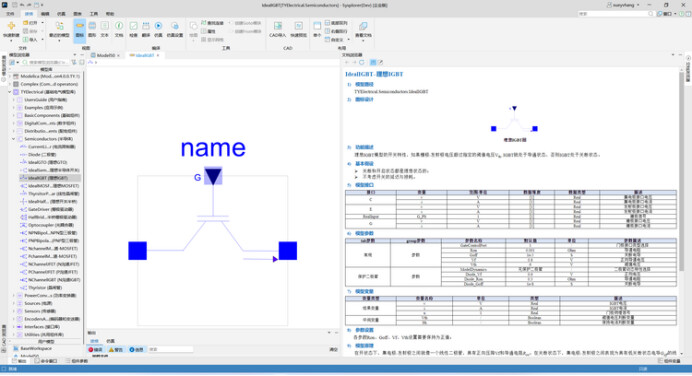

原理也是G极控制，详细可以看模型说明文档。打开组件TYElectrical.Semiconductors.IdealIGBT，打开文档浏览器即可查看详细信息
