Linux中如何定位sysplorer软件问题？
技术分享
发布于 2025-08-06 16:55:55
查看 1过去300天

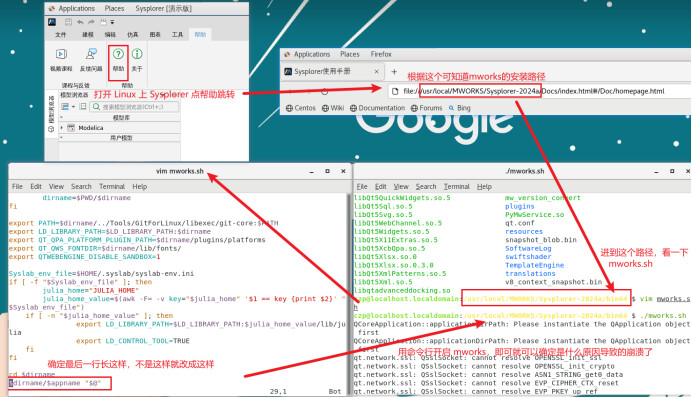

1、打开Linux上Sysplorer点击帮助跳转帮助文档
2、从上一步就可以查看mworks的安装路径
3、进入安装路径，打开mworks.sh
4、确定或修改最后一行为：$dirname/$appname”$0”
5、用命令行开启mworks
命令行启动Sysplorer时，可以在后面追加
1.txt 2>&1 这是在错误重定向
Windows无此种操作，只能看崩溃转存文件，就是dmp文件
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
