Sysplorer 变量树文件如何查看？
技术分享
发布于 2025-08-06 16:56:11
查看 1过去300天
1、选中要看变量树的模型
2、在命令行输入
MwAppOptions.SetKernelBoolOption(“MWorks.CodeGenerator.VariableTree.Xml.Enabled”,True)
3、输入命令后回车，点击模型翻译

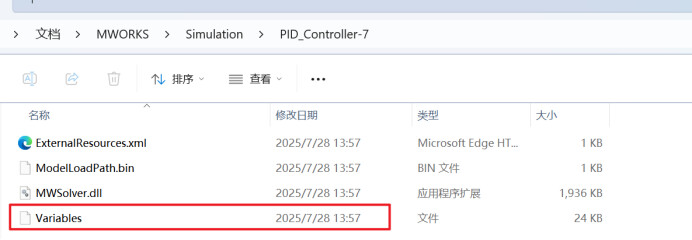

4、仿真结果目录，会在模型文件夹中生成Variable.xml
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
