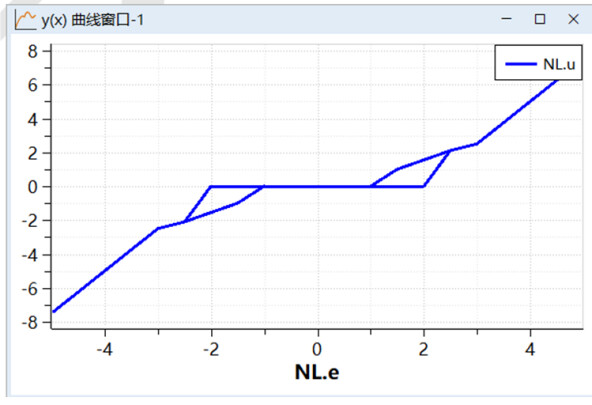

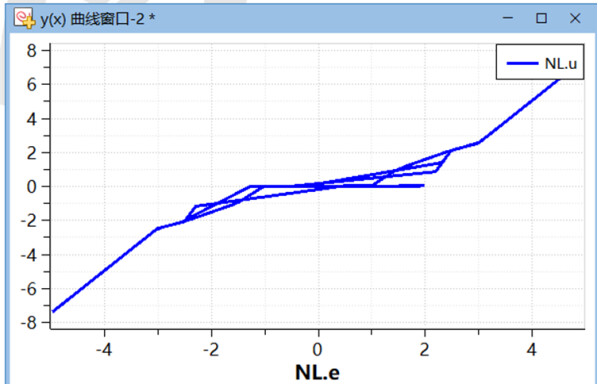

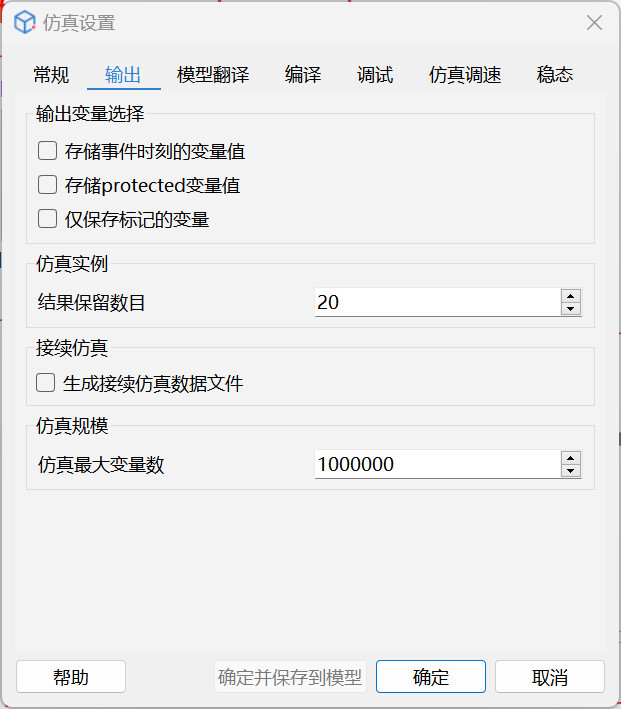

Sysplorer仿真结果曲线不同版本存在差异，怎么处理？技术分享MoHub发布于 2025-08-06 16:56:25查看 1过去300天问题现象 仿真后，曲线绘制结果显示与旧版不一致 旧版 新版 解决方法 对齐仿真设置中的输出信息，确保输出规则一致 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
