Sysplorer如何查看曲线指定时间点的数值？
技术分享
发布于 2025-08-06 16:57:05
查看 1过去300天
可以使用曲线游标功能，或者使用表格窗口功能
解决方法一：
1、仿真Modelica.Blocks.Examples.PID_Controller
2、勾选曲线PI.u_s

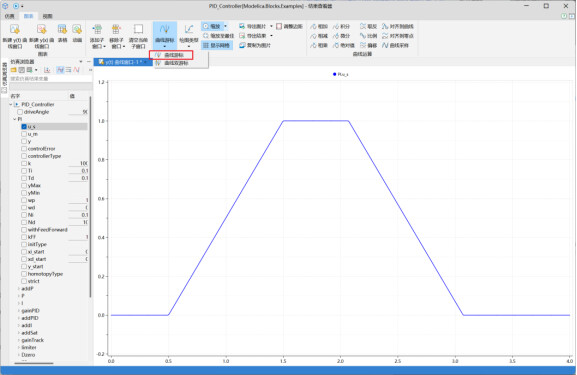

3、在仿真后处理窗口，点击曲线游标下的箭头，选择曲线游标

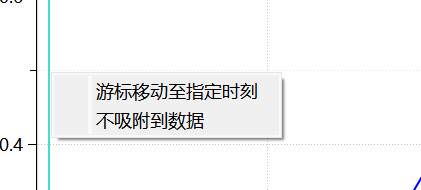

4、右键游标，选择游标移动至指定时刻
解决方法二：
1、仿真Modelica.Blocks.Examples.PID_Controller

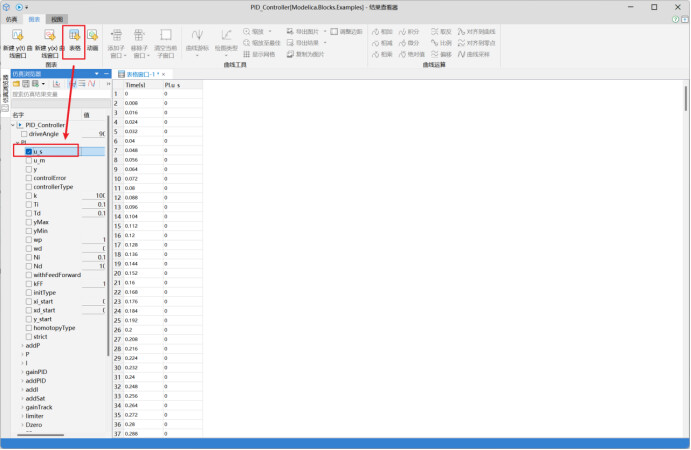

2、打开表格窗口
3、勾选曲线PI.u_s
4、此时可以看到所有数据点的信息
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
