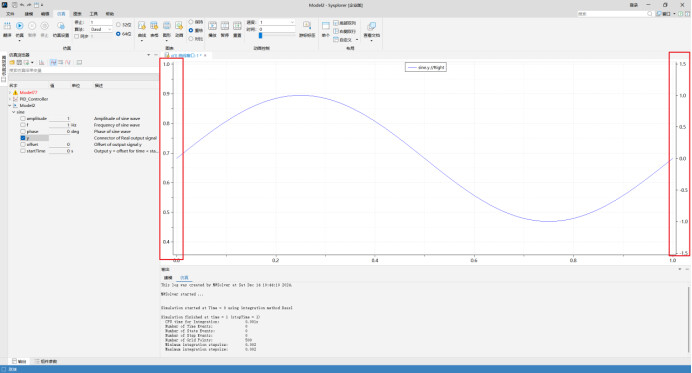

Sysplorer左右坐标轴，不对齐是为什么？技术分享MoHub发布于 2025-08-06 16:57:33查看 1过去300天问题现象 左右坐标轴不对齐，为什么 问题原因 左右坐标轴是为了在有多条曲线情况下，针对不同曲线查看设定的，有的曲线看左边数值，有的曲线看右边数值，所以不会同步变化。 左右坐标轴并不是非得一样的，主要看如何设定，在设定了一侧的坐标轴后，另一侧就和曲线无关了 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
