Sysplorer报错解析文件失败！存在当前CAD模型不支持的组件
技术分享
发布于 2025-10-15 18:29:27
查看 1过去230天

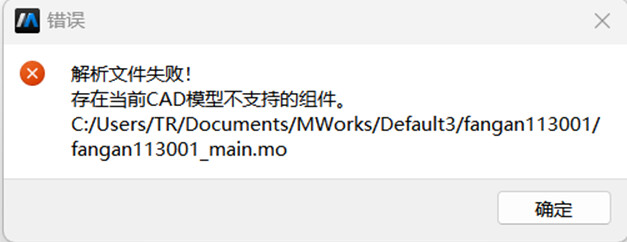

问题现象
解决方法
如果在生成的main.mo中修改了组件或者连接关系，就会出现弹窗那个报错，无法再次打开CAD工具箱
而删除掉main.mo这个模型，就不会校验，不会出现弹窗这个报错，就可以再次打开CAD工具箱了
CAD工具箱生成多体模型的最佳实践是：
1.把生成的main.mo作为灰盒，只在其中添加输入输出端口，然后在其它mo模型中实例化这个多体组件进行使用；
2.如果多体模型没有搭建好，不建议直接在main.mo中直接修改组件或者连线，应该是打开CAD工具箱，在工具箱中修改，然后重新生成
所属专栏：工具箱
产品信息：Sysplorer CAD 工具箱
