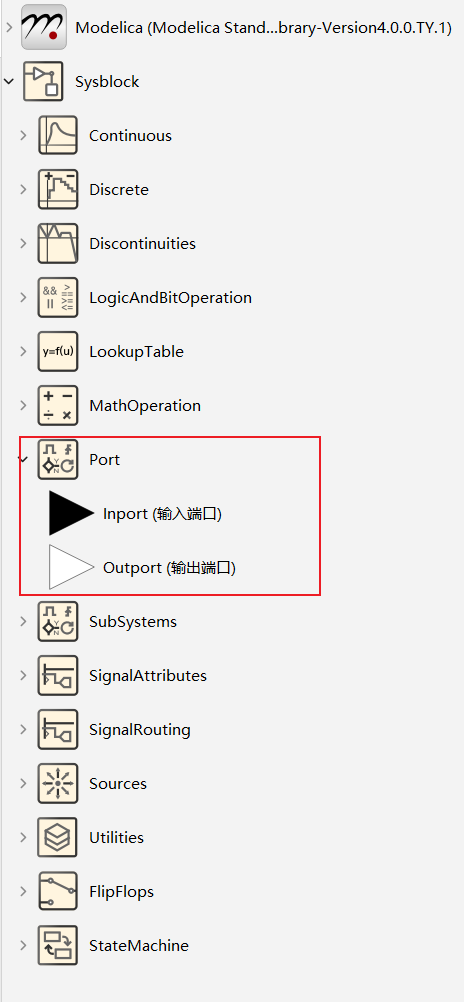

为什么将积分模块拖入后，积分模块的输出和输入无法与外部输出输入相连？技术分享MoHub发布于 2025-10-15 18:29:50查看 1过去230天在使用Sysblock构建模型时需要添加输入输出接口才可以在Sysplorer中与其他模型连接。 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
