Sysplorer 中对应Saturation Dynamic的模型是什么？
技术分享
发布于 2025-10-16 19:17:31
查看 69过去229天
一、问题现象

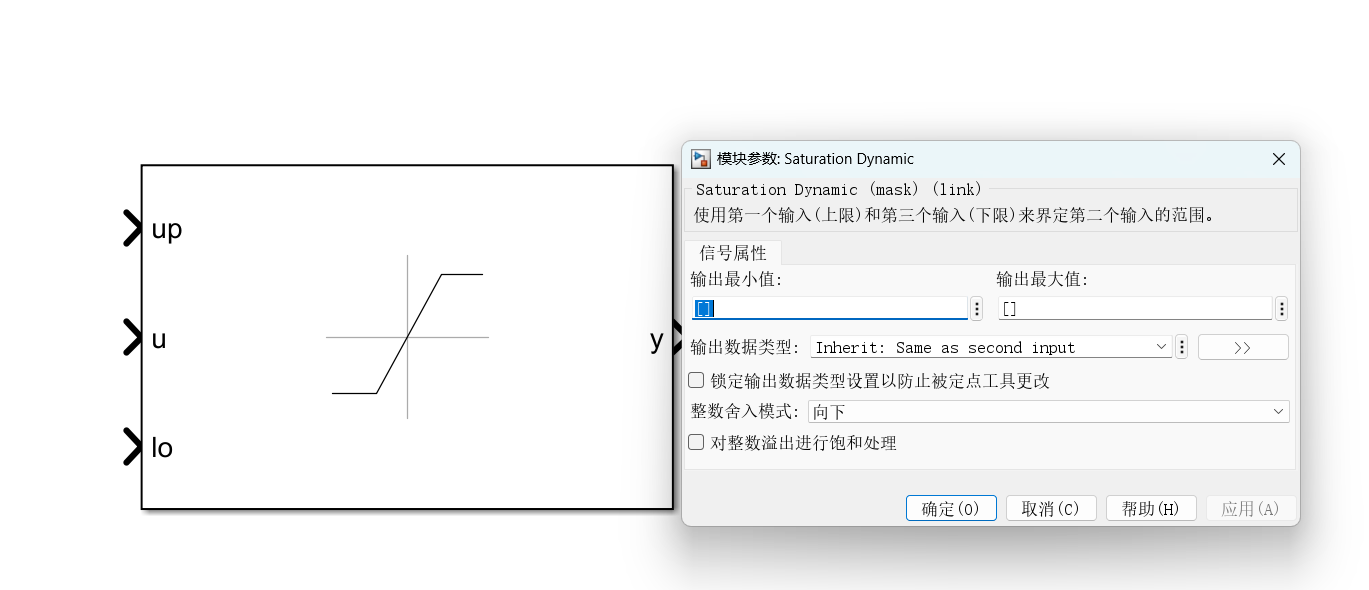

Sysplorer中是否有对应Saturation Dynamic的模型，即对应下图的模型：
二、解决方法/步骤

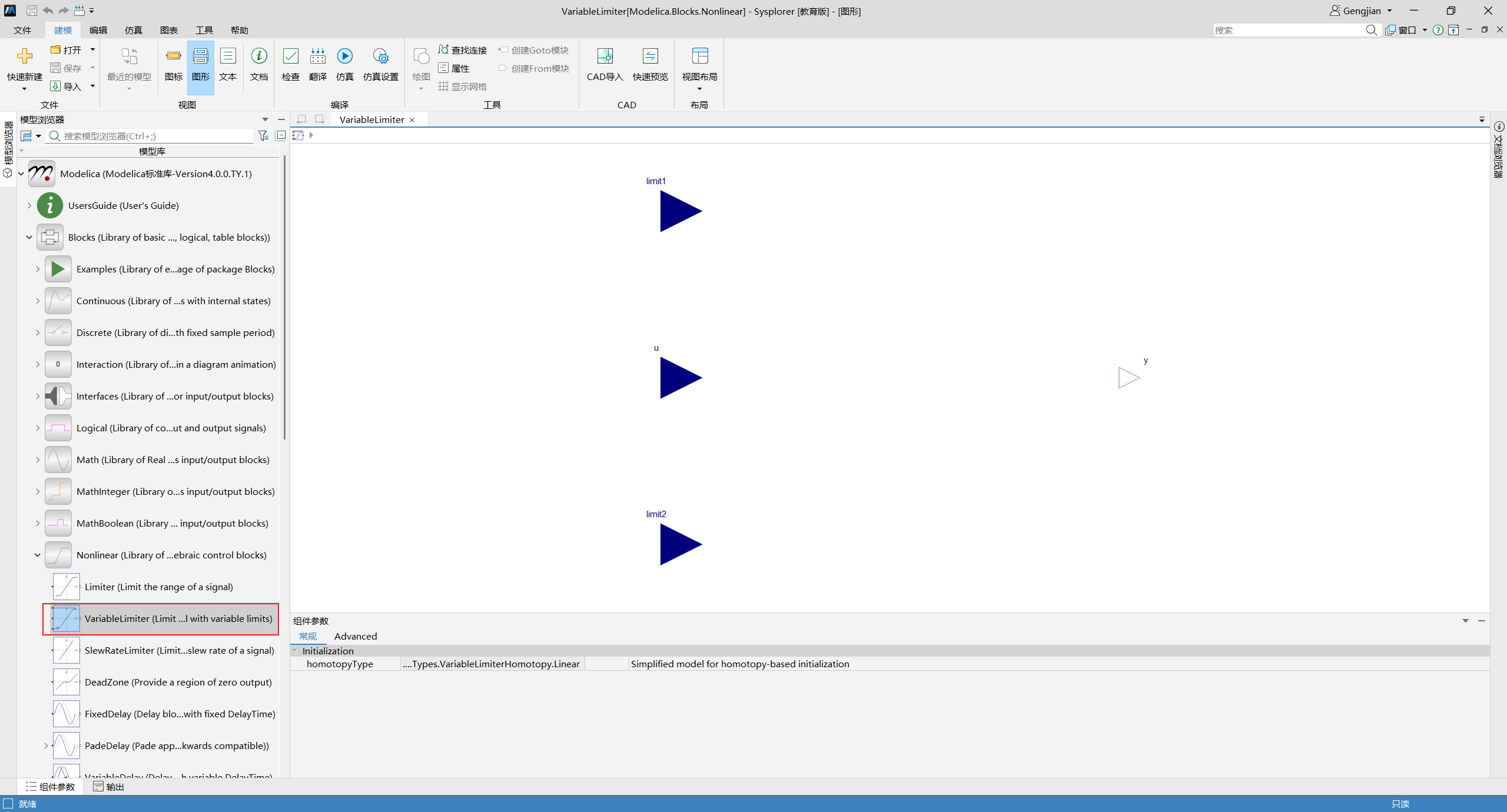

Sysplorer存在对应模型，即限幅模块Modelica.Blocks.Nonlinear.VariableLimiter:
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
