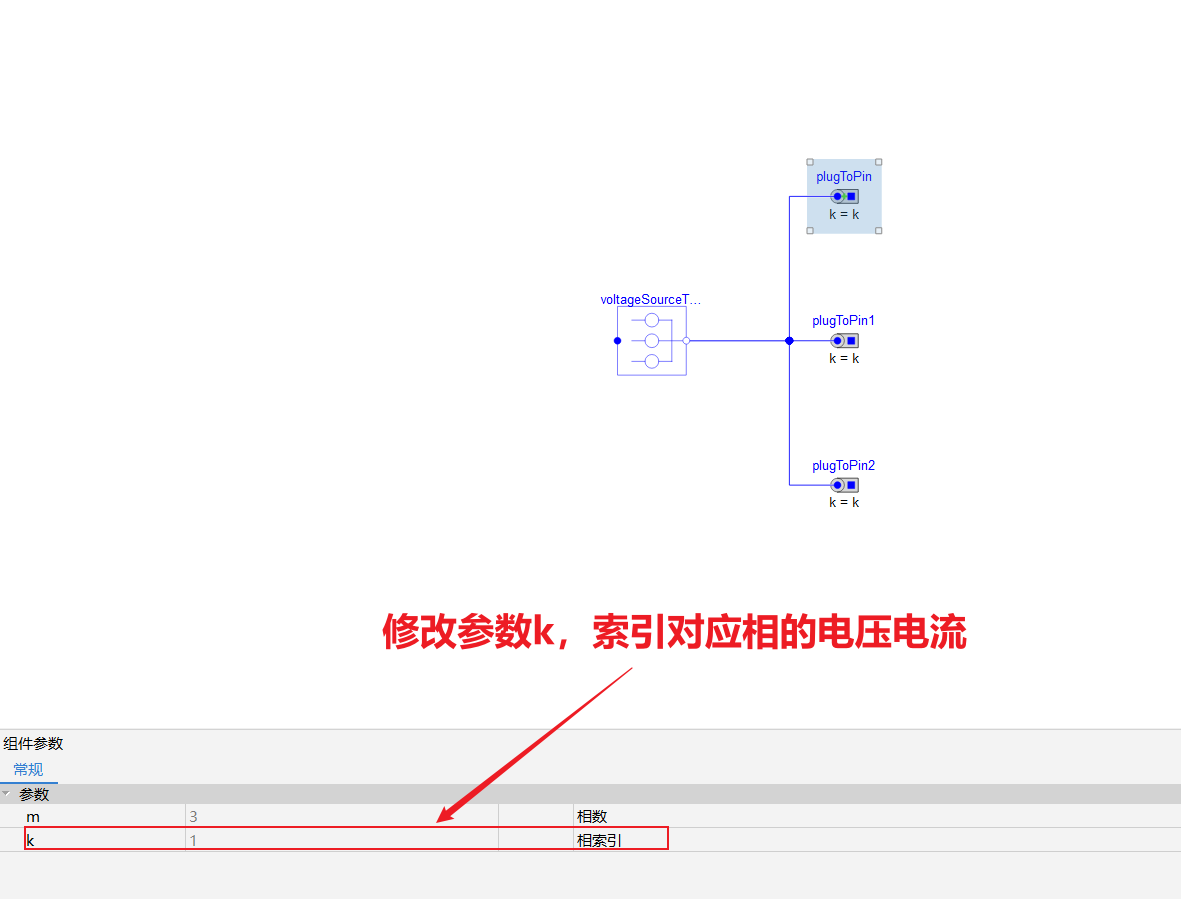

基础电气模型库中的三相变压器组件看着只有一个输出接口，怎么转换为三个输出接口呢？技术分享MoHub发布于 2025-10-16 23:39:14查看 4过去229天使用PlugToPin_p/PlugToPin_n即可将三相电流分为多个输出，如下图所示： 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
