Sysplorer模型库加载异常（图标不正常）、运行报错（找不到ModelicaString.h），如何处理
技术分享
发布于 2025-10-16 23:49:54
查看 1过去229天

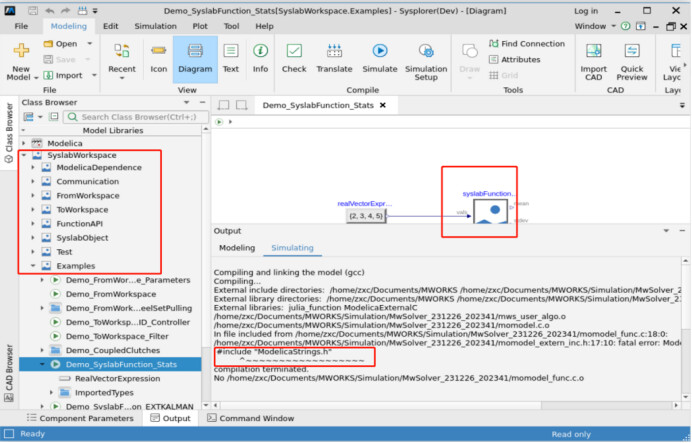

Q：模型库加载异常（图标不正常）、运行报错（找不到ModelicaString.h）
A： 加载的标准库存在问题
ModelicaStrings.h 是标准库自带的一个头文件，这个报错非常清楚就是这个头文件找不到，检查一下本地标准库里有没有 ModelicaStrings.h 这个文件。
图片加载不出来情况，检查文本中图片对应的文件是否路径正确，可尝试新建模型，使用相同路径验证此问题，若不行，可尝试重启电脑解决。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
