Sysplorer柔性体库的柔性体MNF文件怎么导入？
技术分享
发布于 2025-10-16 23:55:57
查看 1过去229天
1、加载柔性体库

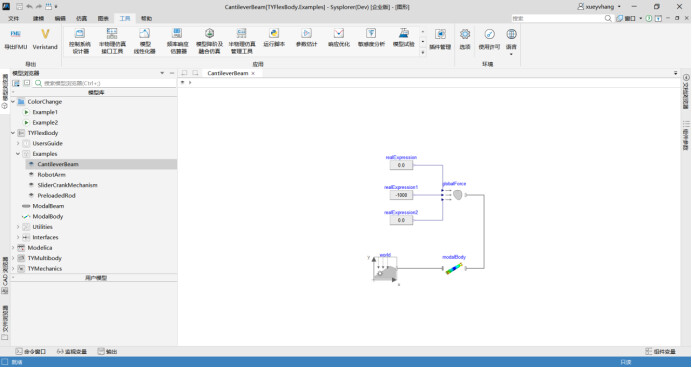

2、双击打开示例TYFlexBody.Examples.CantileverBeam

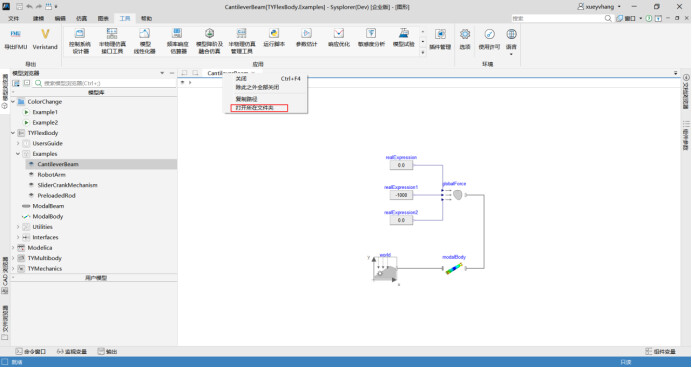

3、点击“打开所在文件夹”打开文件所在路径

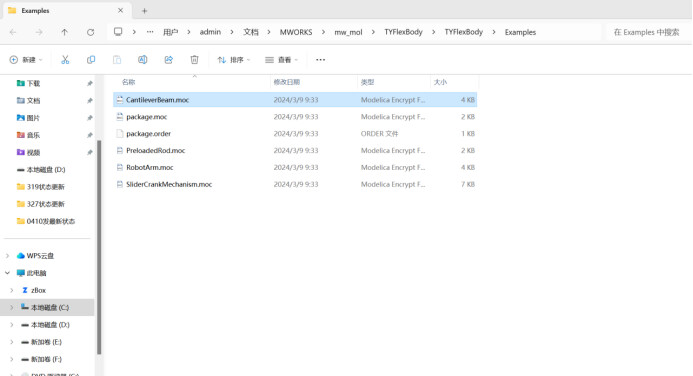

4、进入所在文件夹

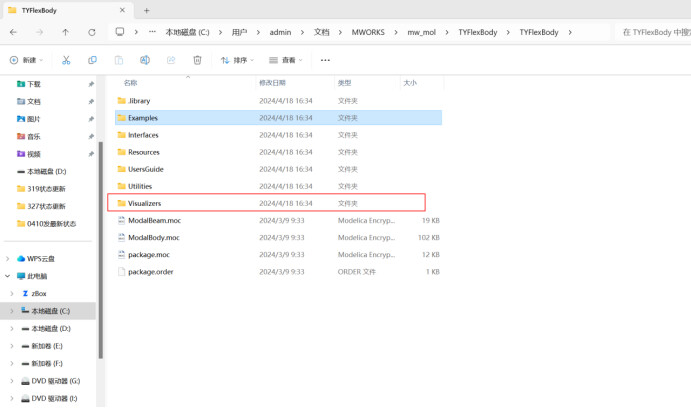

5、往上一层，进入Visualizers文件夹
6、将MNF文件放在这个目录下，之后就可以在软件中调用了。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
