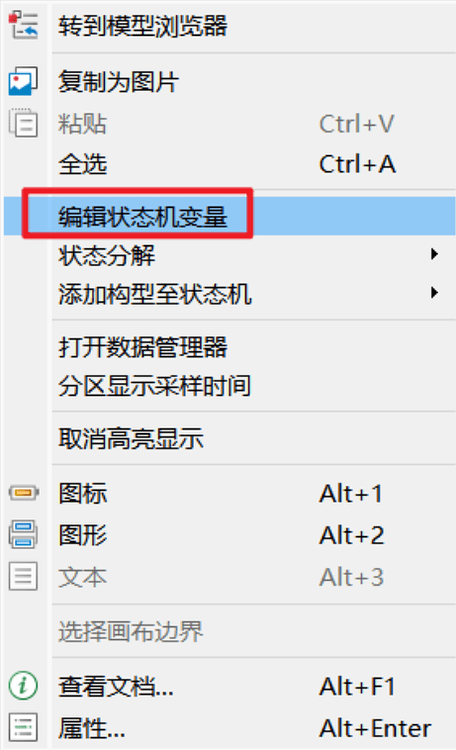

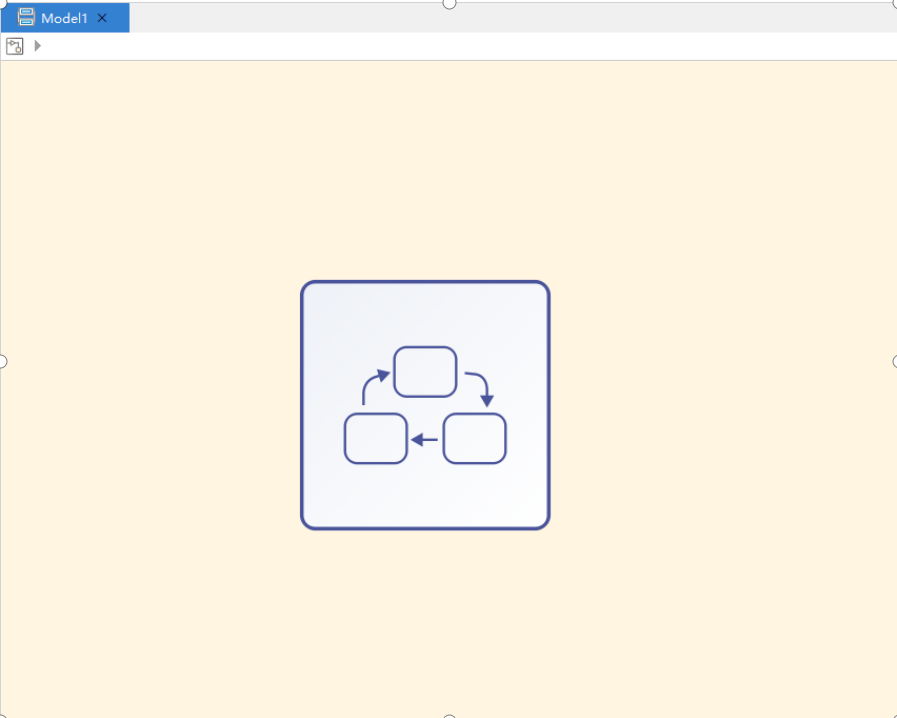

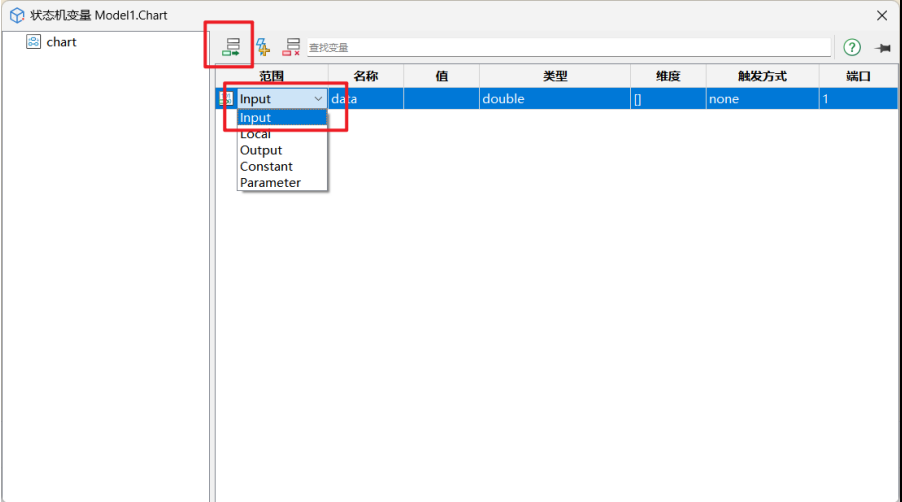

Sysblock怎么给状态机输入？技术分享MoHub发布于 2025-10-17 00:00:15查看 1过去229天1、双击进入状态机内部 2、在空白处右键，选择“编辑状态机变量” 3、新建变量，之后将变量归属范围改为input 所属专栏：Sysblock基础平台产品信息：Sysblock 嵌入式代码生成工具系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
