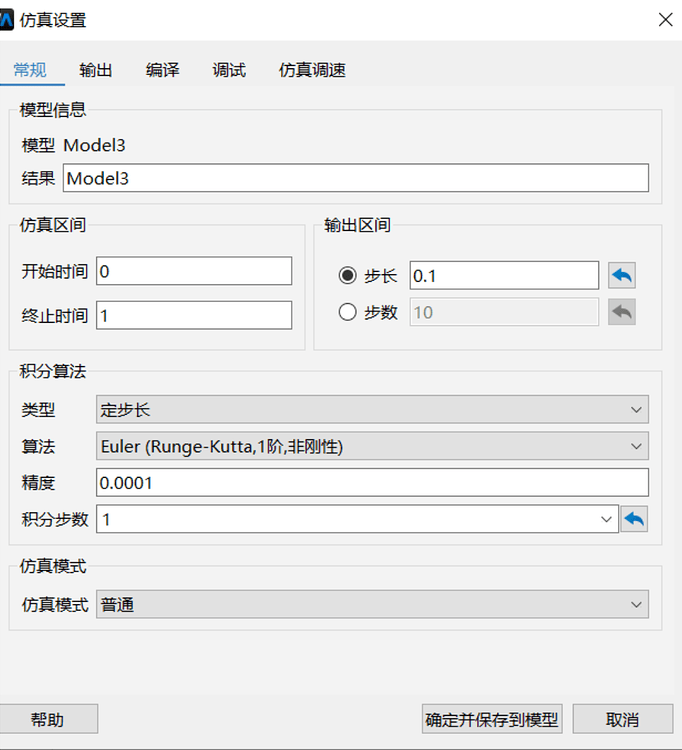

Sysplorer混合模型，输出的步长和设置的步长不一样技术分享MoHub发布于 2025-10-17 00:00:26查看 4过去229天原因是混合模型，不同组件步长不同。 解决方法：打开sysblock的组件，点击仿真设置，设置一个和Sysplorer相同的步长 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
