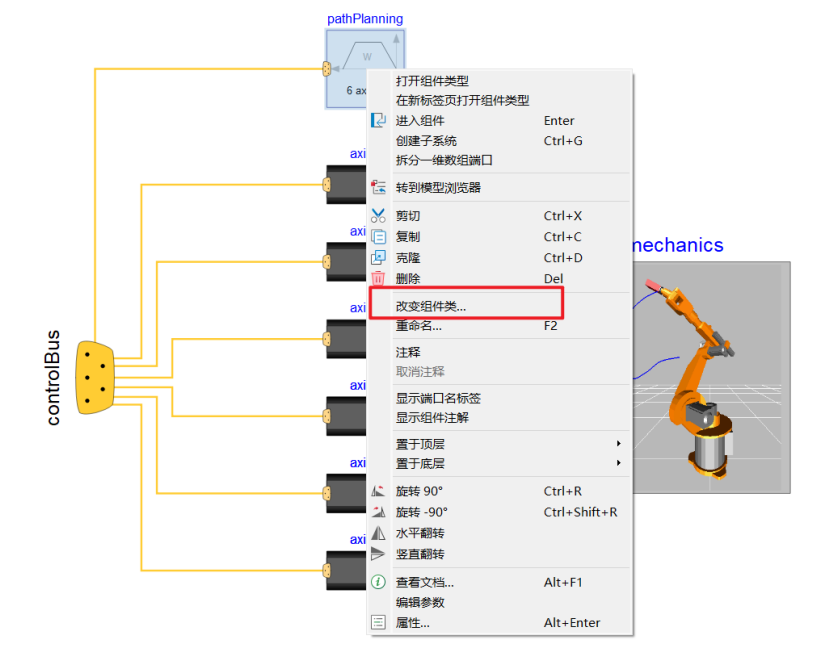

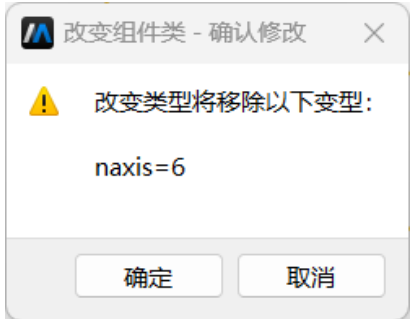

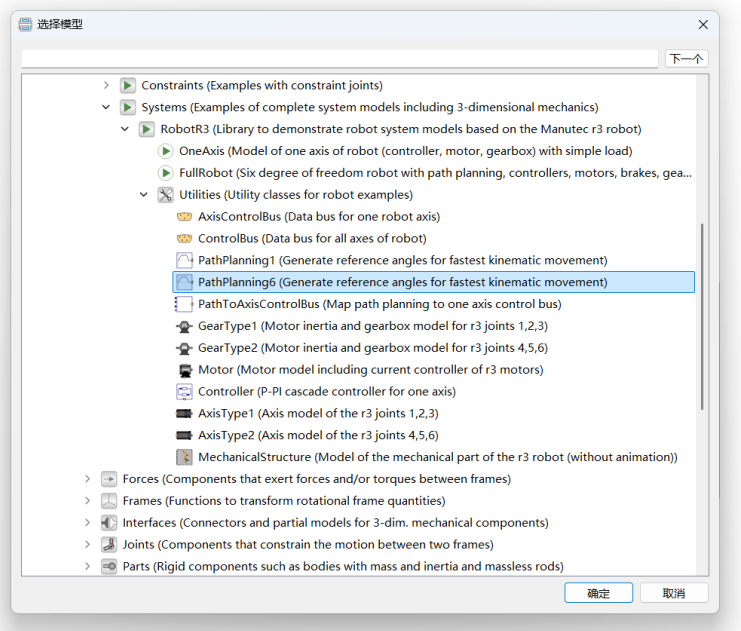

Sysplorer中替换近似功能组件，但是不修改原有参数，怎么实现技术分享MoHub发布于 2025-10-17 00:01:32查看 2过去229天可以使用改变组件类的功能 解决方法： 1、选中需要替换的组件，右键 可以使用改变组件类的功能 2、点击“改变组件类”，就可以选择模型来替换这个组件了 3、选择后，点击确定 4、此时会根据切换前后的差异给出提示，例如下图 5、点击确定后即可 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
