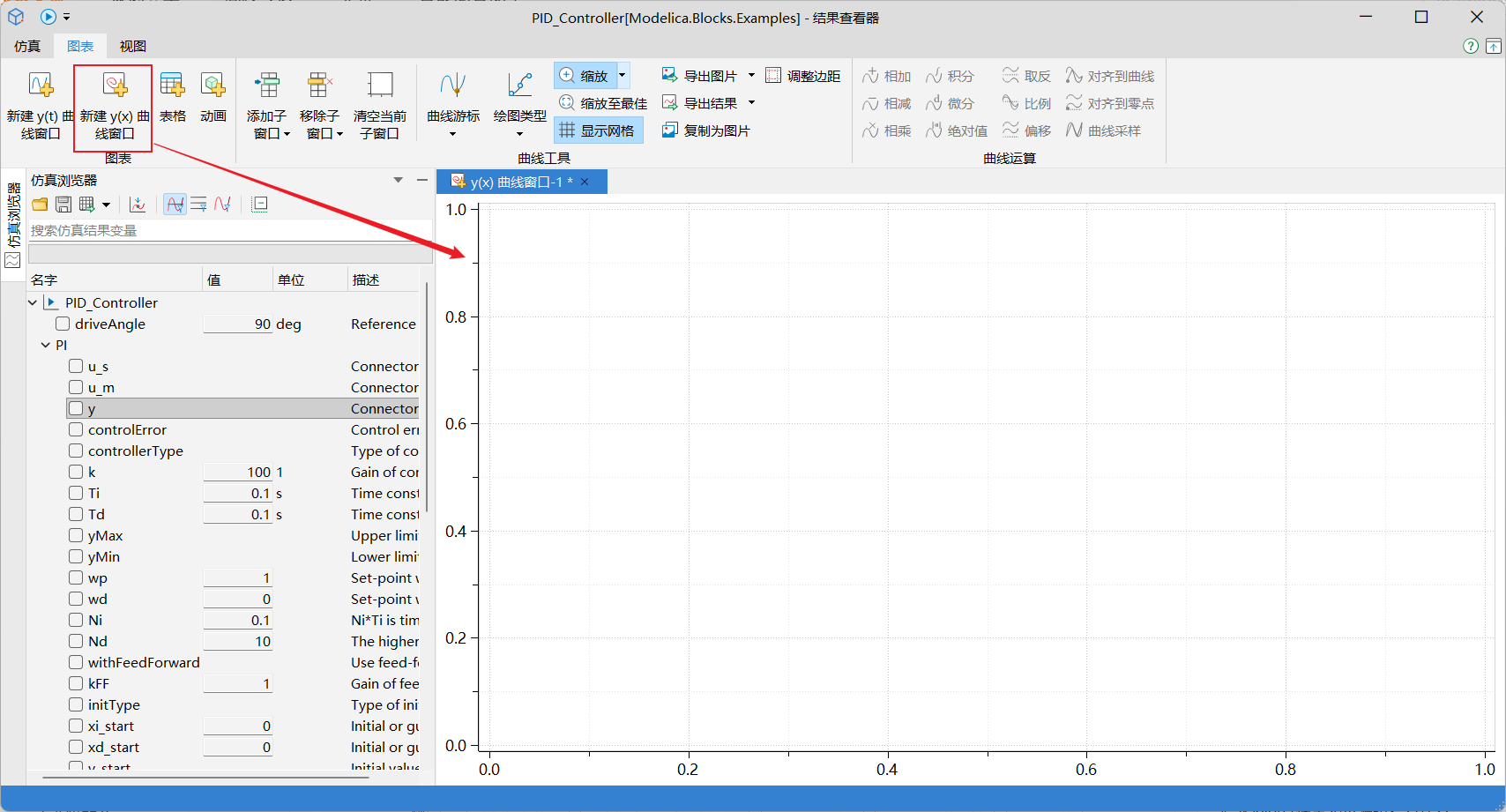

Sysblock中能否直接创建y(x)曲线？技术分享MoHub发布于 2025-11-15 16:38:12查看 1过去199天仿真完成后，可以在结果查看器中，新建y(x)曲线，然后一次将模块的仿真结果拖拽进窗口中即可创建。 当前暂不支持直接使用模块组件的方式创建 所属专栏：Sysblock基础平台产品信息：Sysblock 嵌入式代码生成工具系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
